It's right for you if...
You have big dreams for the likes of The Mid-South, Belgian Waffle Rides and UNBOUND Gravel, and know you'll need a seriously dialled-in gravel bike for these epic adventures. You want our most advanced Checkpoint frame that's made specifically for gravel racing or fast gravel adventures.
The tech you get

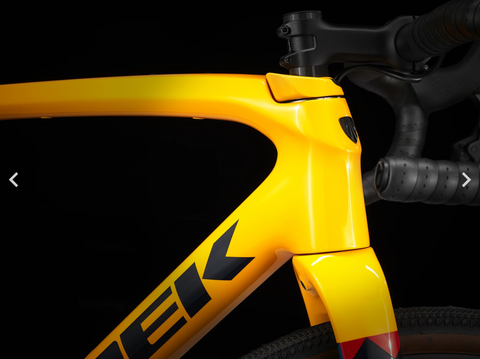

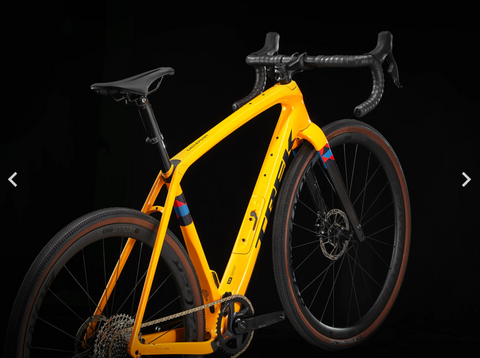

A 700 Series OCLV Carbon frame with IsoSpeed and carbon armour, a progressive geometry that's stable at speed and efficient when you're grinding up a climb, internal storage, hidden cables that won't interfere with bags and an integrated frame bag and mudguard mounts. Plus, a carbon fork, 1x12 SRAM Rival AXS wireless electronic drivetrain with a wide-range cassette and Bontrager Aeolus Pro 3V OCLV Carbon wheels with wide 700x40c gravel tyres that provide extra traction and stability. Fits up to 45 c tyres.
The final word
This ultra-light, meticulously-crafted Checkpoint frame is designed and built for performance and comfort during gruelling gravel races or long and fast gravel rides. It's ultra-light and fast, and comes with premium parts like an advanced wireless electronic drivetrain and carbon wheels.
Why you'll love it
- The SRAM Rival AXS wireless drivetrain won’t leave a hole in your wallet, and you can fully customise your shift logic using the AXS app
- The IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around
- Massive tyre clearance means you can use tyres up to 45c for extra traction and stability in any condition

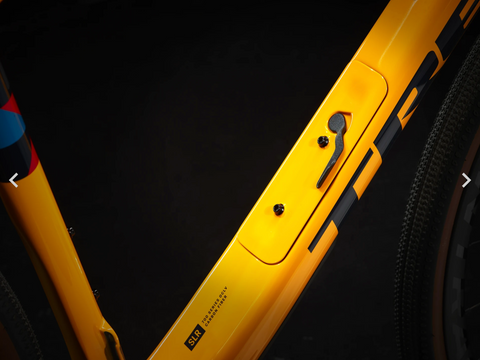

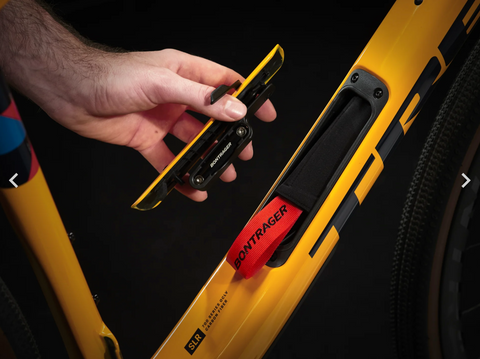

- A sleek internal storage compartment gives you a versatile spot to stow tools and gear

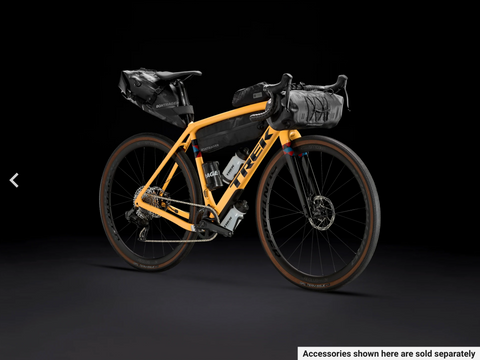

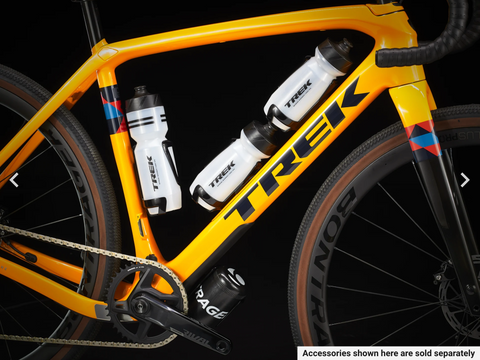

- Integrated frame bag mounts and mudguard mounts make it easy to carry gear and water
Colour Options:

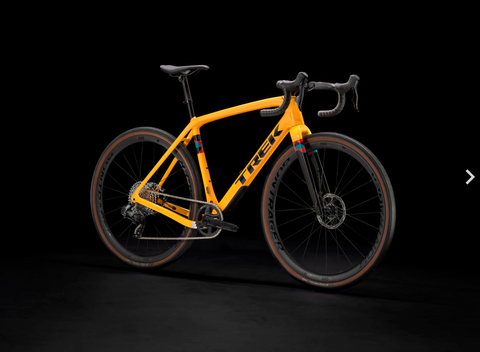

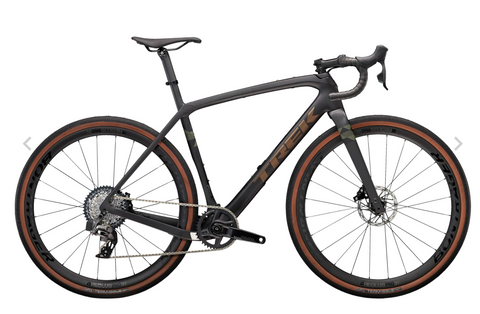

- Matte Deep Smoke/Gloss Olive Grey

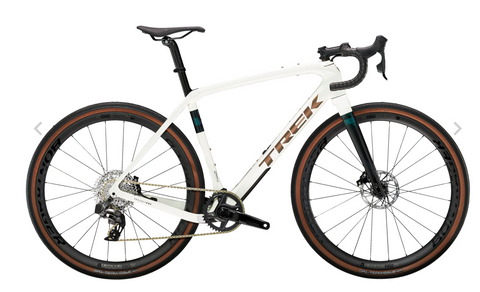

- Era White/Emerald Iris

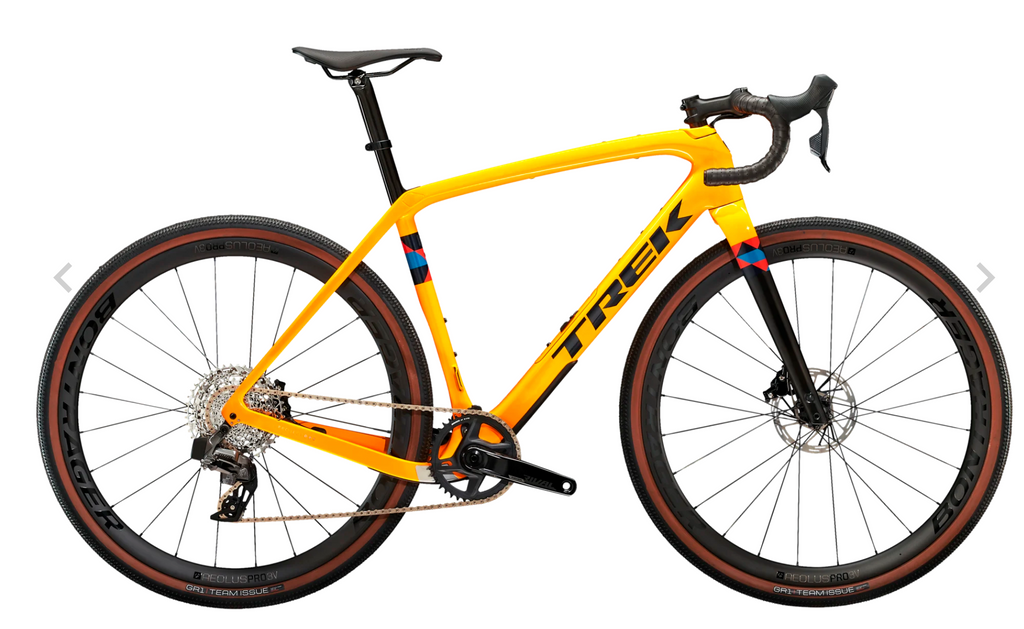

- Marigold/Nautical Nautical Navy

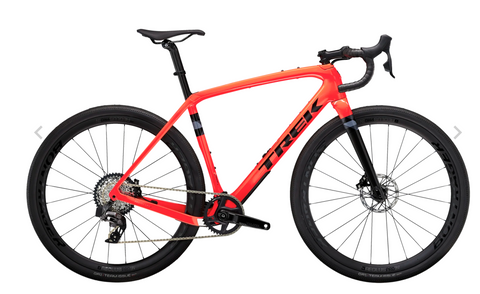

- Radioactive Coral
*Please note – spec applies to all sizes unless listed separately
| Frame | 700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru axle |
|---|---|

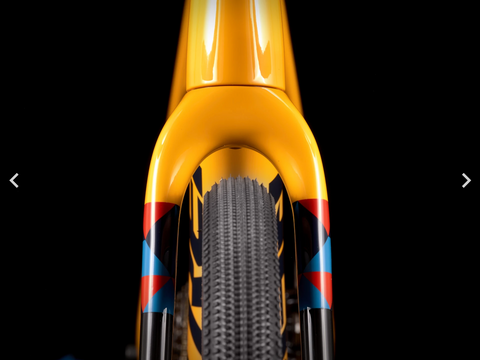

| Fork | Checkpoint carbon, tapered carbon steerer, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Frame fit | Gravel |
| Weight | 56 - 8.90 kg / 19.63 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Shifter | SRAM Rival eTap AXS, 12-speed |
|---|---|

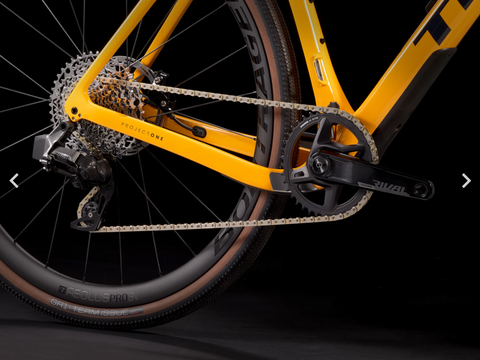

| Rear derailleur | SRAM Rival XPLR eTap AXS, 44T max cog |
| *Crank |
Size: 49 SRAM Rival AXS w/ power meter, 40T, DUB Wide, 165 mm length |
|
Size: 52 SRAM Rival AXS w/ power meter, 40T, DUB Wide, 170 mm length |
|
|
Size: 54, 56 SRAM Rival AXS w/ power meter, 40T, DUB Wide, 172.5 mm length |
|
|
Size: 58, 61 SRAM Rival AXS w/ power meter, 40T, DUB Wide, 175 mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1251, 10-44, 12-speed |
| Chain | SRAM Rival, 12-speed |
| Max. chainring size | 1x: 46T, 2x: 50/37 |
| *Saddle |
Size: 49, 52 Bontrager Verse Short Elite, hollow stainless steel rails, 155 mm width |
|---|---|
|
Size: 54, 56, 58, 61 Verse Short Elite, hollow stainless steel rails, 145 mm width |
|
| *Seatpost |
Size: 49, 52, 54, 56 Bontrager carbon seat mast cap, 5 mm offset, short length |
|
Size: 58, 61 Bontrager carbon seat mast cap, 5 mm offset, tall length |
|

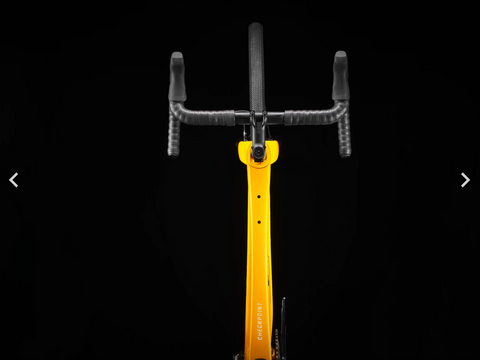

| *Handlebar |
Size: 49 Bontrager Pro IsoCore VR-SF, 38cm |
|
Size: 52 Bontrager Pro IsoCore VR-SF, 40cm |
|
|
Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm |
|
|
Size: 58, 61 Bontrager Pro IsoCore VR-SF, 44cm |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem |
Size: 49 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
Size: 52, 54 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
|
Size: 56, 58 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
|
Size: 61 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Brake | SRAM Rival hydraulic disc |
| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
| Battery | SRAM eTap battery pack (with charger) |
|---|---|
| Bag | Bontrager BITS Internal Frame Storage Bag |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
